Most frontend architecture diagrams miss these 3 critical layers. Here's what I actually ship at enterprise scale.
A production-focused frontend architecture model with 9 layers, including the caching, observability, and build/deploy layers most diagrams leave out.
I have worked with and reviewed frontend architectures across enterprise products for years. The same gaps show up again and again.
Most diagrams stop at routing, components, state, and API calls. That is necessary, but not enough for systems that must scale under real product pressure.
This is the fuller picture I use in production, including the layers many teams leave out.
The full 9-layer frontend architecture I use

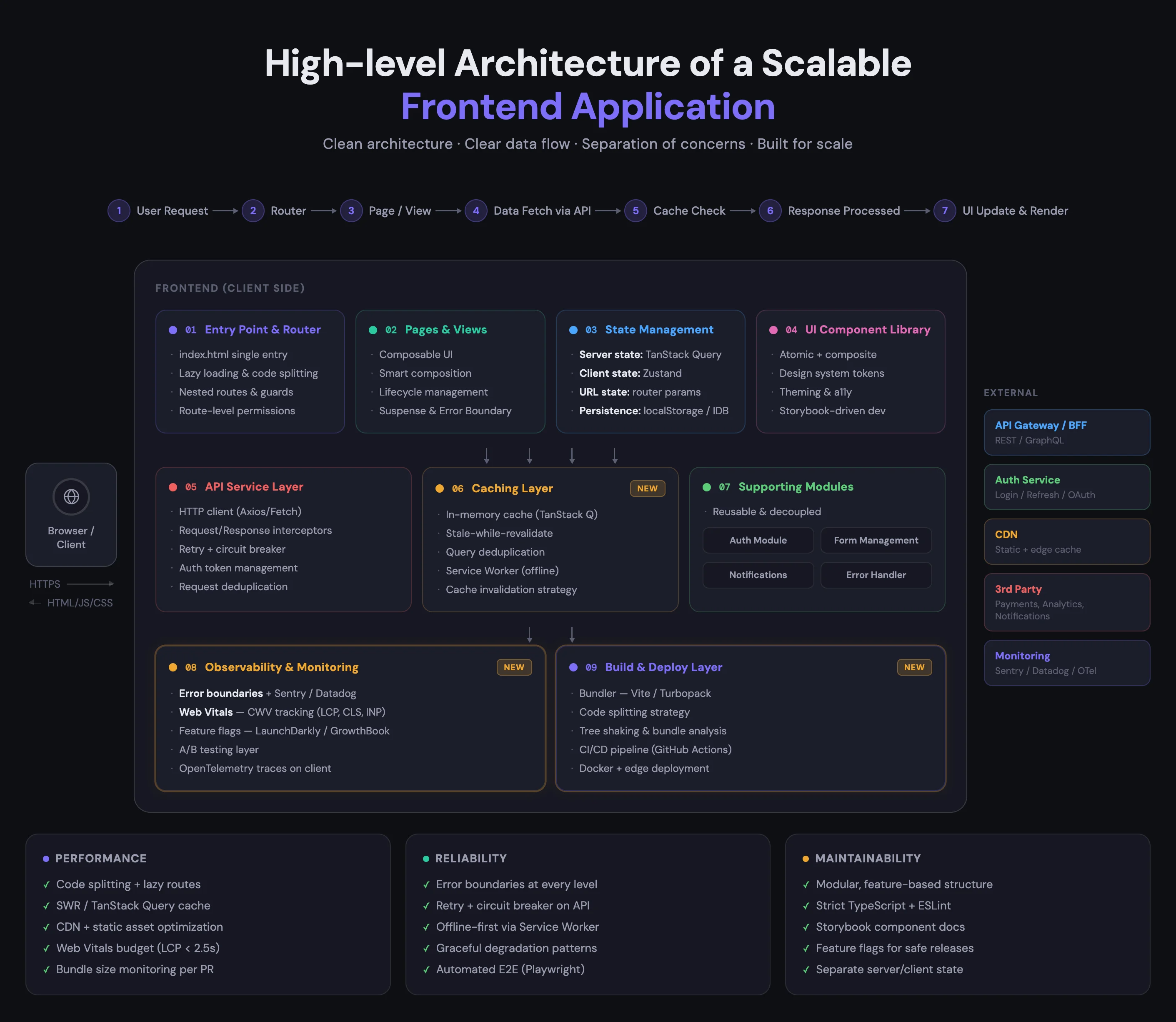

This is the complete map. Click the cover image above to open the full-size version for detailed review.
- 01. Entry Point and Router: single HTML entry, route-level guards, lazy loading, and intentional code splitting.
- 02. Pages and Views: composable UI with Suspense boundaries and explicit error handling per route.
- 03. State Management: server state, client state, and URL state handled as separate systems.
- 04. UI Component Library: design tokens and Storybook-first components with accessibility built in.
- 05. API Service Layer: HTTP client plus retries, request dedupe, token rotation, and resilience controls.
- 06. Caching Layer: stale-while-revalidate behavior with offline support through Service Worker.
- 07. Supporting Modules: auth, forms, notifications, and global error handling decoupled from pages.
- 08. Observability and Monitoring: error tracking, Web Vitals budgets, feature flags, and client telemetry.
- 09. Build and Deploy Layer: bundler strategy, bundle analysis per PR, CI/CD, E2E checks, and edge delivery.
Layer 03 is where most teams create avoidable complexity
State management is not one problem. It is three different lifecycles with different ownership and invalidation rules.
When teams merge all state into one global store, complexity and regression risk usually explode.
- Server state: use TanStack Query or SWR for fetching, cache invalidation, and background refresh.
- Client state: keep UI/session state in lightweight stores such as Zustand.
- URL state: keep filters, pagination, tabs, and route params in the router so links stay shareable.
- Do not collapse all three concerns into one Redux tree unless you want avoidable coupling.
The 3 critical layers most diagrams still miss
In architecture reviews, these are the gaps I see most often. They are exactly where reliability and velocity break later.
- Caching Layer (06): stale data must render immediately while fresh data revalidates silently in the background.
- Observability and Monitoring (08): Sentry, Web Vitals budgets (for example LCP under 2.5s), feature flags, and client-side OpenTelemetry.
- Build and Deploy Layer (09): Vite or Turbopack tuning, bundle checks in every PR, Playwright E2E in CI, and deployment strategy.
The shift that changed how I design frontend at scale
Stop treating state management as one problem.
Server state, client state, and URL state have different lifecycles, different invalidation rules, and different ownership boundaries. Separate them from day one.
Final take
Scalable frontend architecture does not end at components and API calls. It includes caching, observability, and deployment decisions as first-class design concerns.
